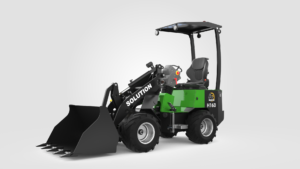

Introducing the S160 Mini Loader: Where Performance Meets Practicality.
Engineered for versatility, this compact powerhouse seamlessly combines efficiency with its low weight of 1180kg, making it ideal for various tasks. With its ergonomic design, it navigates tight spaces effortlessly while delivering unmatched performance.
Equipped with the Avant quick hitch, it offers compatibility with over 200 attachments, ensuring adaptability for diverse applications. Experience the perfect balance of agility and power with the S160 Mini Loader.
| Technical data | S160 | |
| Engine model | Kubota D1105 | Perkins 403J-11 |
| Fuel type | Diesel | |
| Cylinders | 3 | |
| Displacement cc | 1123 | 1131 |
| Emission standards | EU Stage V&EPA Tier 4 Final | |
| Max engine output kW | 18.2@3000rpm | 18.4@2800rpm |
| Max engine torque Nm | 70.4@2200rpm | 66.9@2100rpm |
| Cooling system | Water | |
| Operating voltage V | 12 | |
| Battery Ah | 75 | |
| Operating weight kg | 1300 | |
| Tipping load,max kg | 800 | |
| Lifting capacity,max kg | 1000 | |
| Operator’s cab | Canopy | |
| Travel speed km/h | 0~20 | |
| Steering angle° | 45 | |
| Turn radius inside/outside mm | 940/2030 | |
| Standard tires | 23×8.50-12NHS-4TL | |
| Fuel tank capacity I | 40 | |
| Hydraulic ol tank capacity l | 50 | |
| Working hydraulic flow I/min | 40 | |
| Working hydraulic pressure bar | 200 | |
| Transmission type | Hydrostatic | |
