| 型 号 M o d e l | SL20R | SL30R/SL35R | SL40R | SL50R | SL60R | |

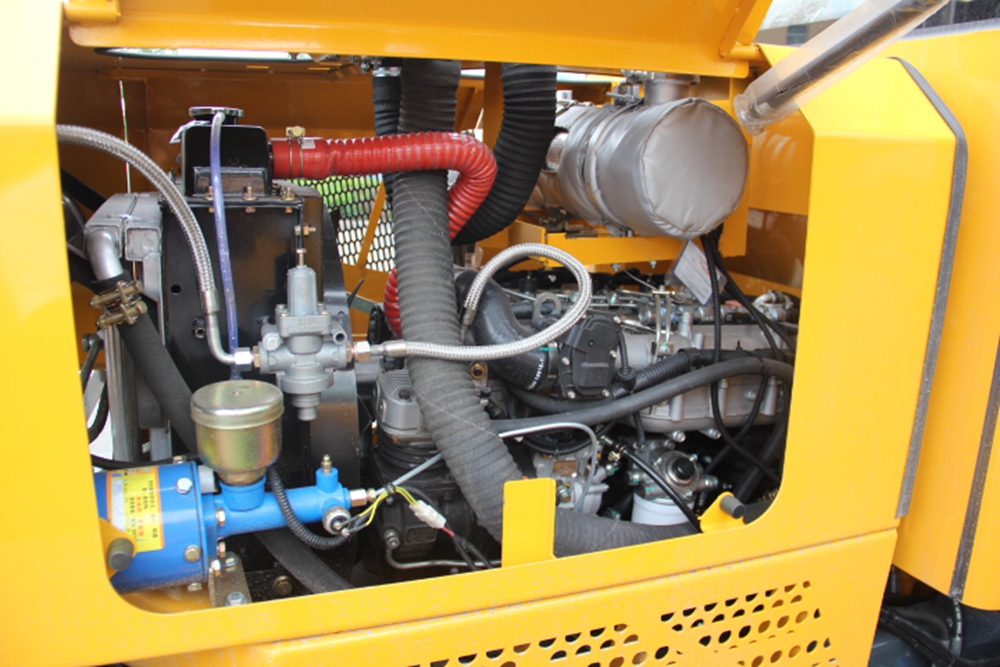

| 发动机型号 | yunnei 490 | yunnei 490 | yunnei 4100 Turbo | yunnei 4102Turbo | yunnei4102 Turbo | |
| Engine model | ||||||
| 发动机功率 | Kw | 37 | 42 | 65 | 76 | 76 |
| Engine Power | ||||||
| 额定起重量 Rated load | KG | 2000 | 3500 | 4000 | 5000 | 6000 |
| 整机重量 | KG | 4050 | 4450 | 5300 | 5700 | 6300 |
| machine weight | ||||||
| 载荷中心距 | mm | 600 | 600 | 600 | 600 | 600 |
| Load center distance | ||||||
| 整车尺寸 | mm | 3300*1600*2250 | 3700*1800*2450 | 3800*2000*2600 | 3900*2080*2650 | 4150*2400*2650 |
| Size(L*W*H) | ||||||
| 轴距 | mm | 1950 | 2250 | 2350 | 2350 | 2350 |
| Wheelbase | ||||||
| 最小离地间隙 Min.ground | mm | |||||
| clearance | 235 | 240 | 300 | 330 | 330 | |
| 最大提升高度 | mm | 3000 | 3000 | 3000 | 3000 | 3000 |
| Max.lifting height | ||||||
| 货叉长 | mm | 1220 | 1220 | 1220 | 1220 | 1220 |
| Fork length | ||||||
| 最小转弯半径 | mm | 3500 | 3600 | 3800 | 3900 | 4100 |
| Min.Turning radius | ||||||
| 门架倾角(前/后) Frame angle a/β | () | 12°/10° | 12/10° | 12°/10° | 12°/10° | 12°/10° |
| 门架静止高度 | mm | |||||
| Mast static height | 2230 | 2240 | 2300 | 2330 | 2330 | |
| 满载最大行驶速度 Max.speed(Full- load) | ||||||
| 20Km/h | 20Km/h | 20Km/h | 20Km/h | 20Km/h | ||
| 最大爬坡角度 | <35° | <35° | <35° | <35° | <35° | |
| Max.climbing angle | ||||||
| 驱动方式 | ||||||
| Drive mode | 4×4 | 4×4 | 4×4 | 4×4 | 4×4 | |
| 轮胎尺寸(前/后) | 20.5/70-16 | 23.5/70-16 | 16/70-20 | 16/70-24 | ||
| Tire size(front/rear) | 12R-22.5 | |||||
| 制动器/行车制动器 Service brake | disc brake盘式制动 | disc brake盘式制动 | disc brake盘式制动 | disc brake盘式制动 | disc brake盘式制动 |
