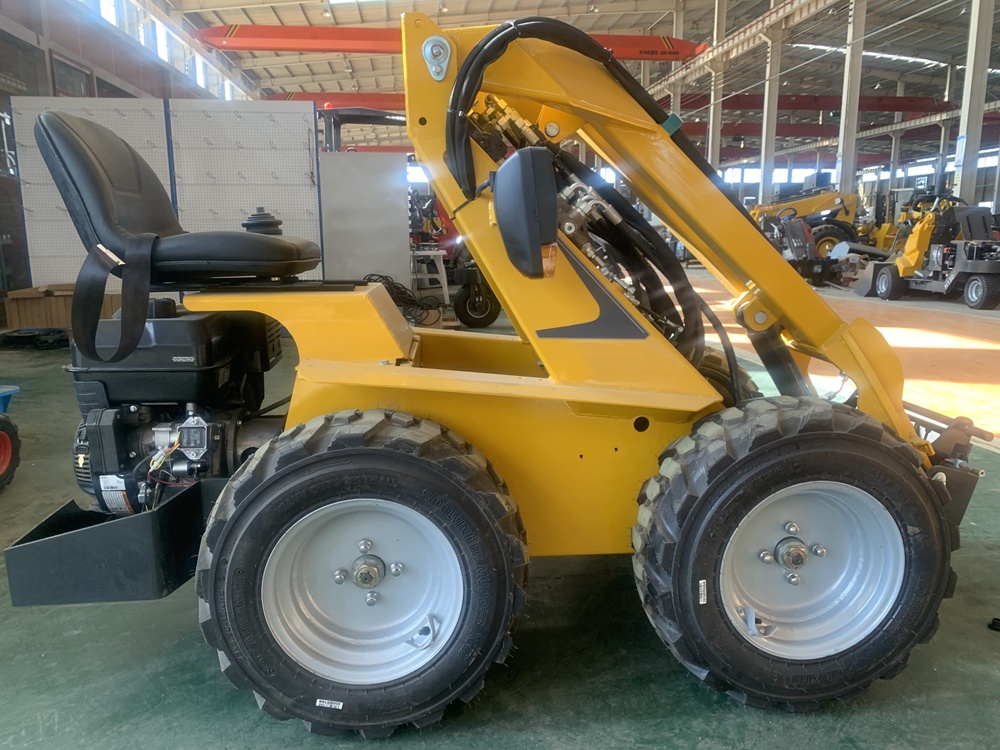

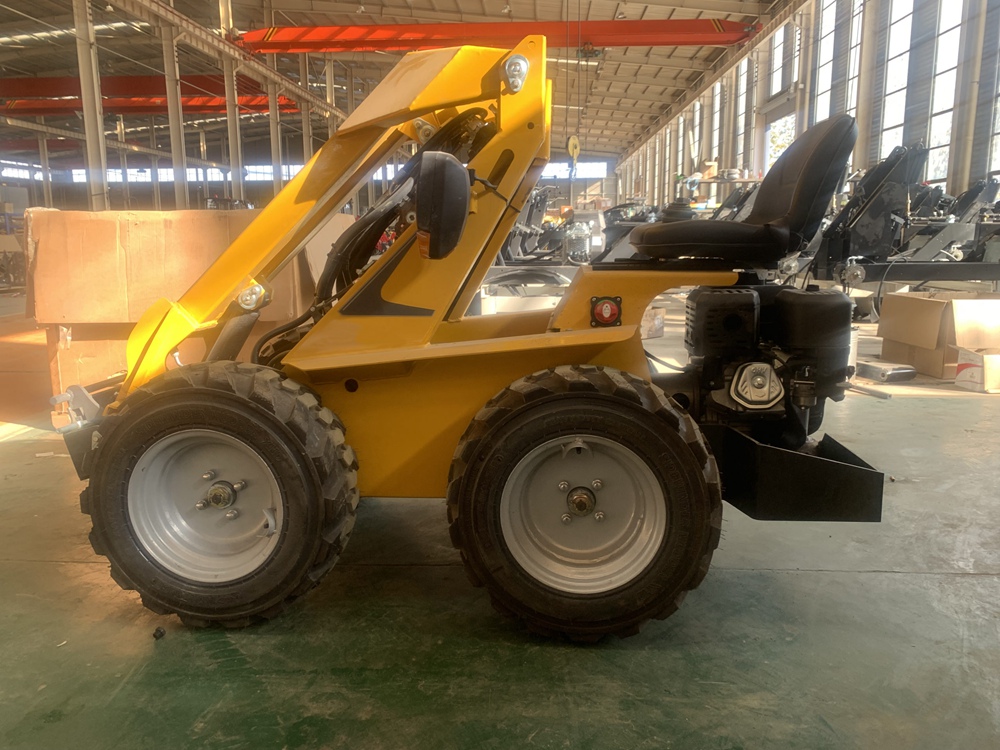

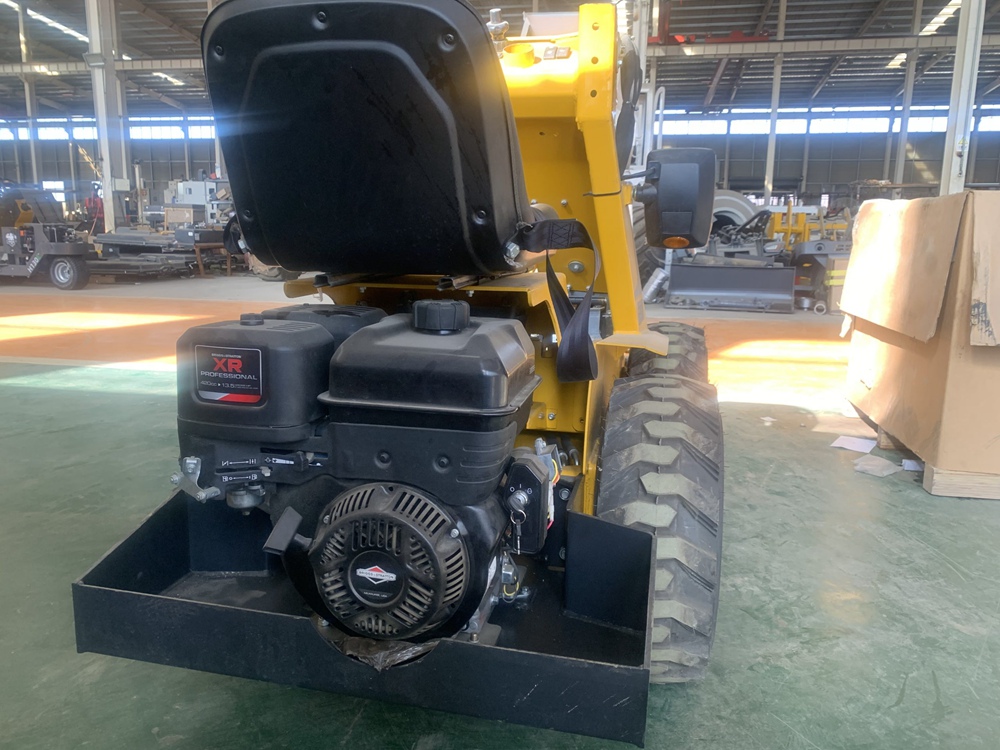

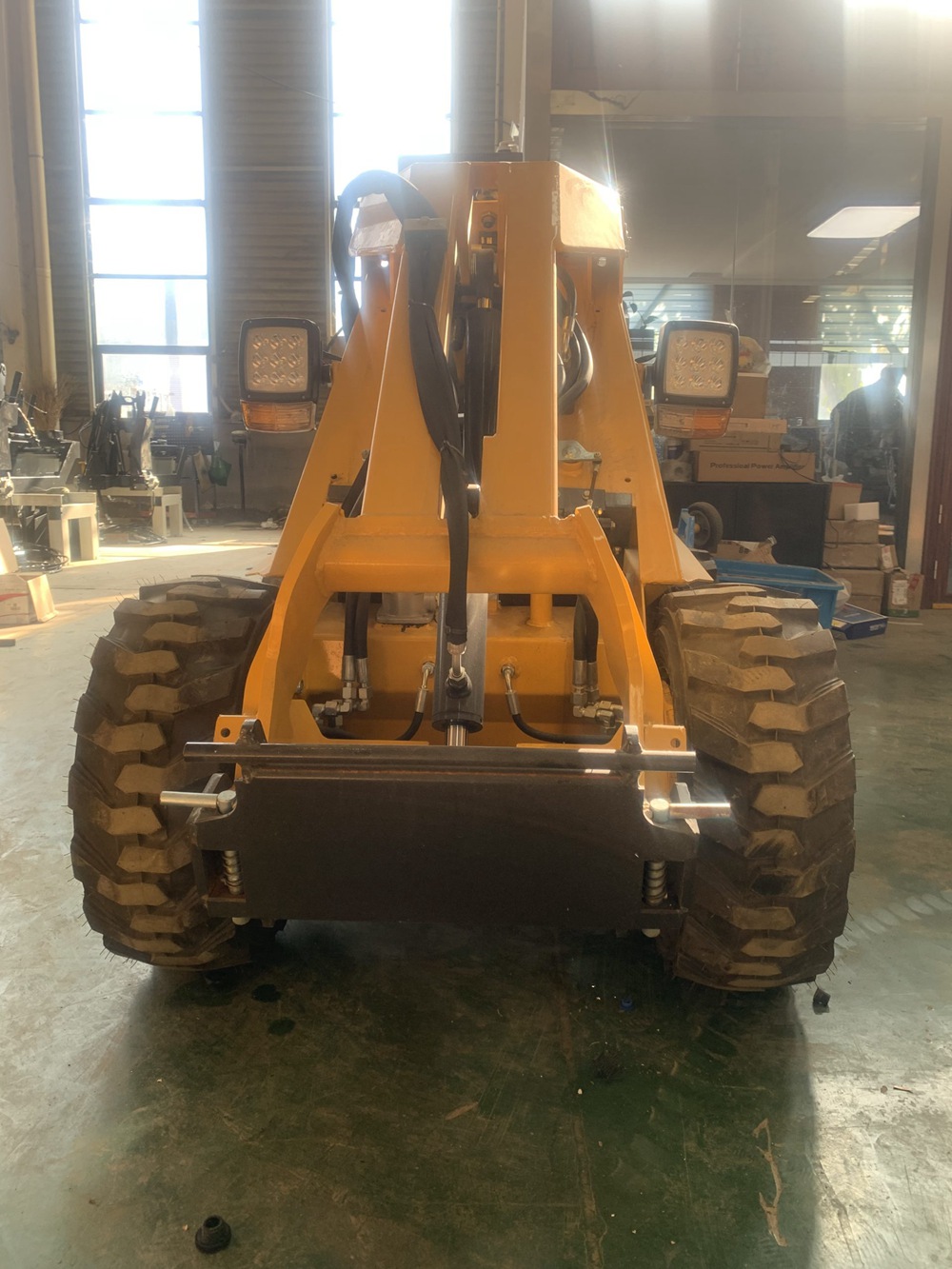

The S14 Skid-Steer embodies cost-effective efficiency with its robust Briggs & Stratton engine. Compact yet powerful, it offers unmatched value for various tasks.
Engineered for reliability and performance, the S14 excels in handling diverse applications with ease. From landscaping to light construction work, this skid-steer delivers efficient performance and agility, ensuring optimal productivity while minimizing costs.
Experience the perfect balance of affordability and power with the S14 Skid-Steer – your ultimate solution for cost-effective operations without compromising on quality.
| Technical data | SL14 | |
| Engine model | HONDA GX390 | Briggs &Stratton XR2100 |
| Fuel type | Gasoline | |
| Cylinders | 1 | |
| Displacement cc | 389 | 420 |
| Emission standards | EU Stage V | Euro stage v&EPA Tier 4 Final |
| Max engine output kW | 8.7@3600 rpm | 10@3600 rpm |
| Max engine torque Nm | 26.5@2500 rpm | 28.5@3060 rpm |
| Cooling system | Air | |
| Operating voltage V | 12 | |
| Battery Ah | 45 | |
| Operating weight kg | 530 | |
| Tipping load ,max kg | 500 | |
| Lifting capacity,max kg | 750 | |
| Travel speed km/h | 0-9 | |
| Steering angle° | 0~360 | |
| Turn radius inside/outside mm | 0/1580 | |
| Standard tires | 23*8.5-12 | |
| Fuel tank capacity I | 6.6 | |
| Hydraulic oil tank capacity I | 53 | |
| Working hydraulic flow I/min | 28.8 | |
| Working hydraulic pressure bar | 200 | |
| Transmission type | Hydrostatic | |
