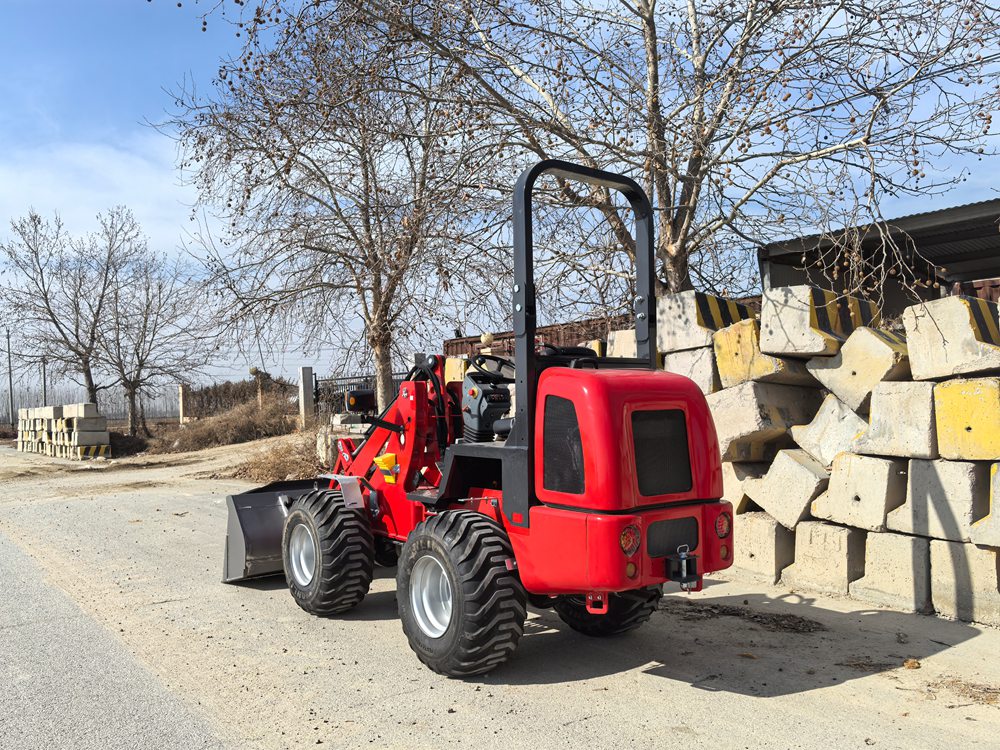

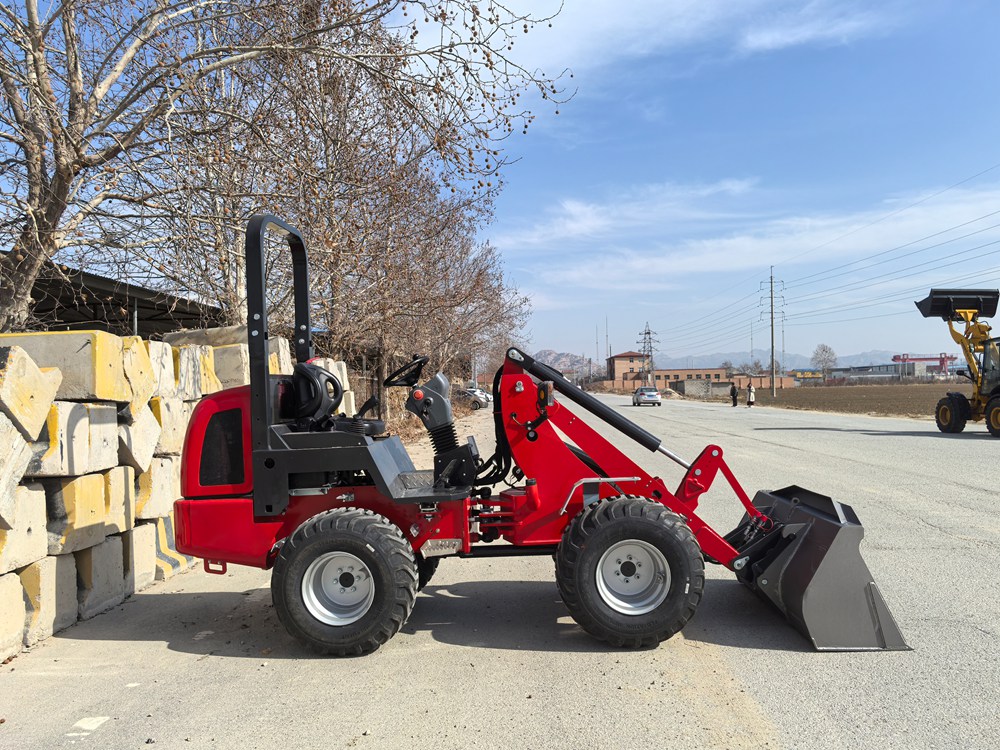

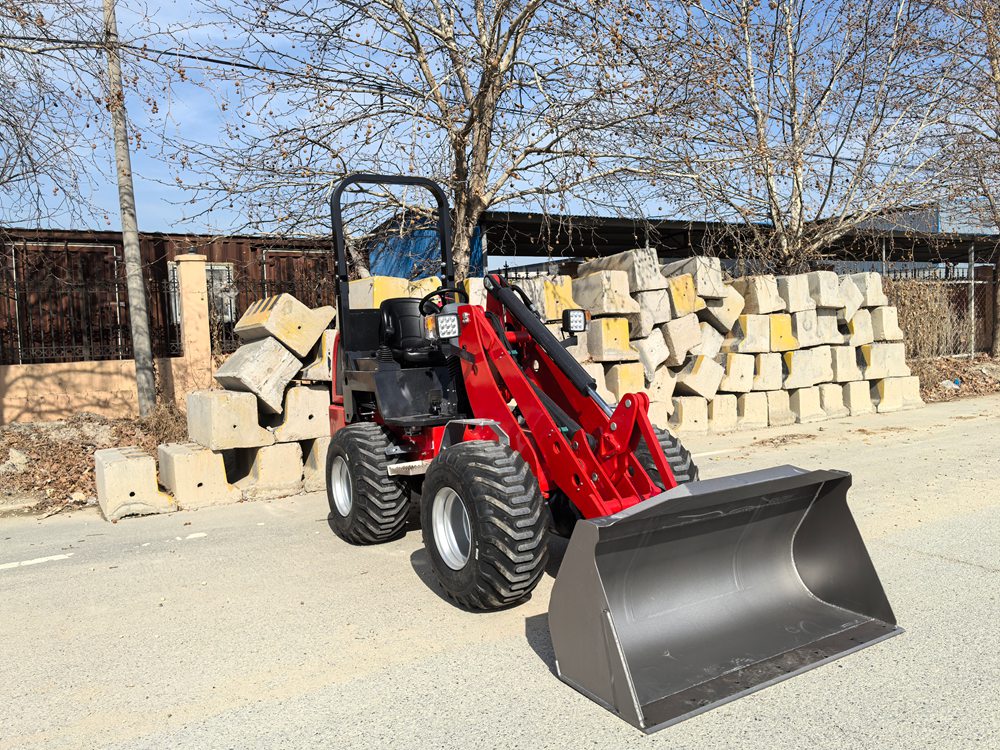

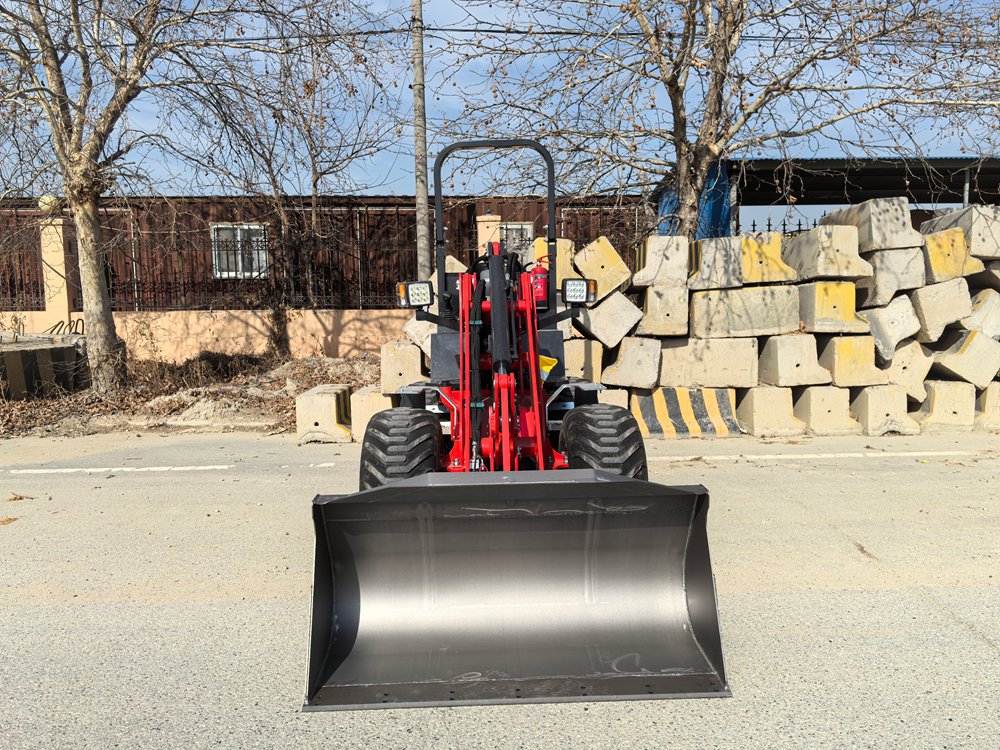

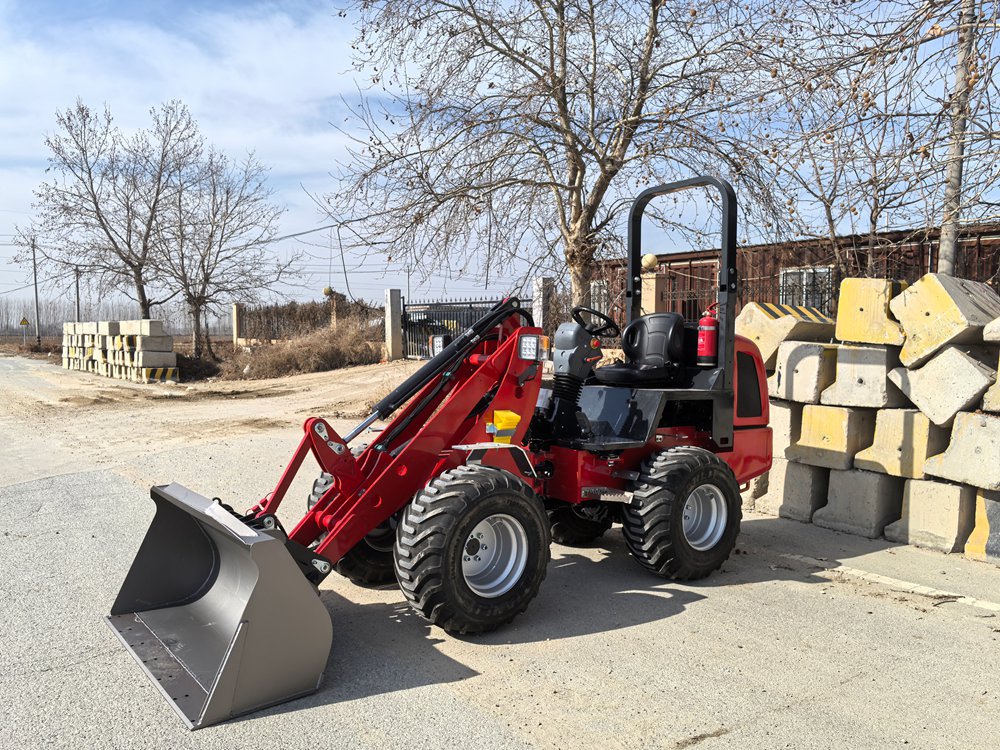

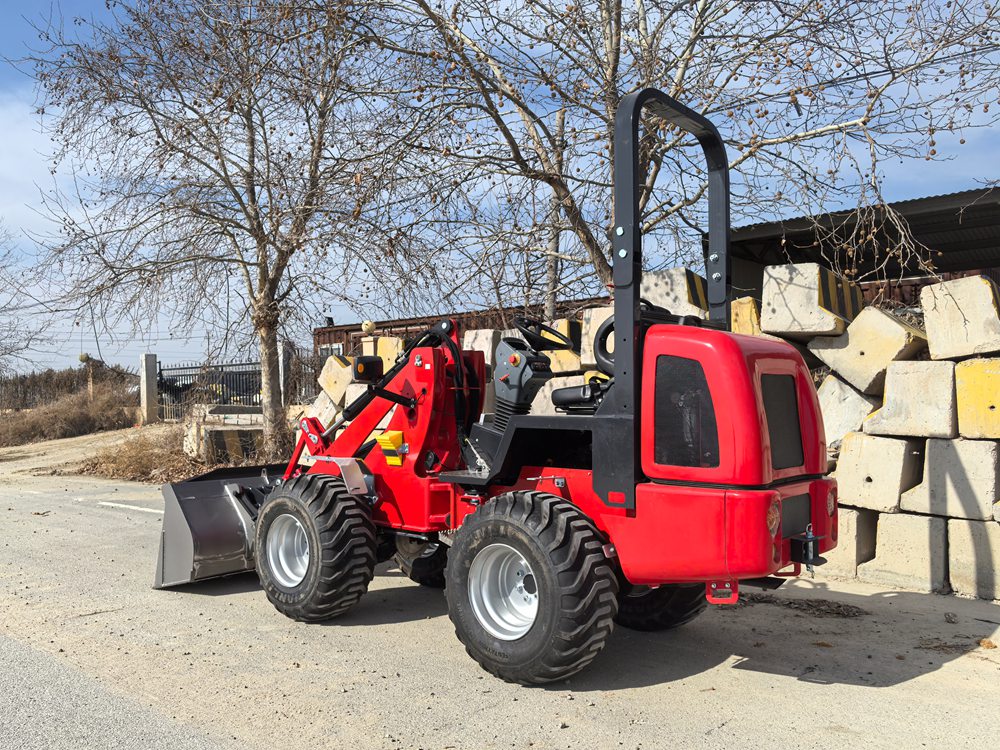

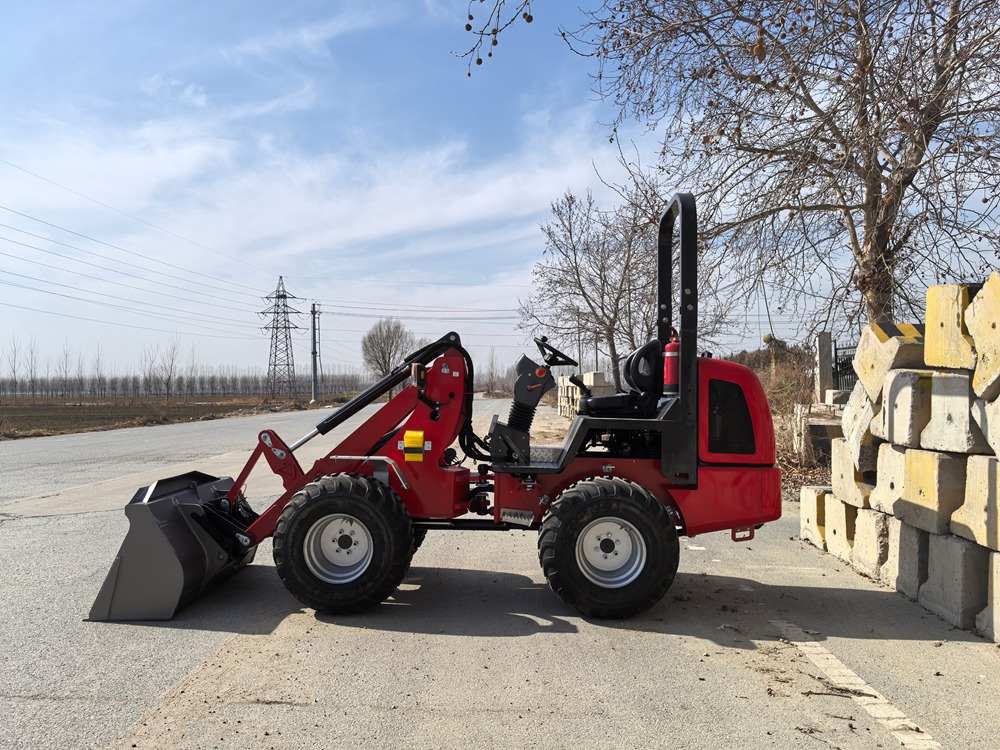

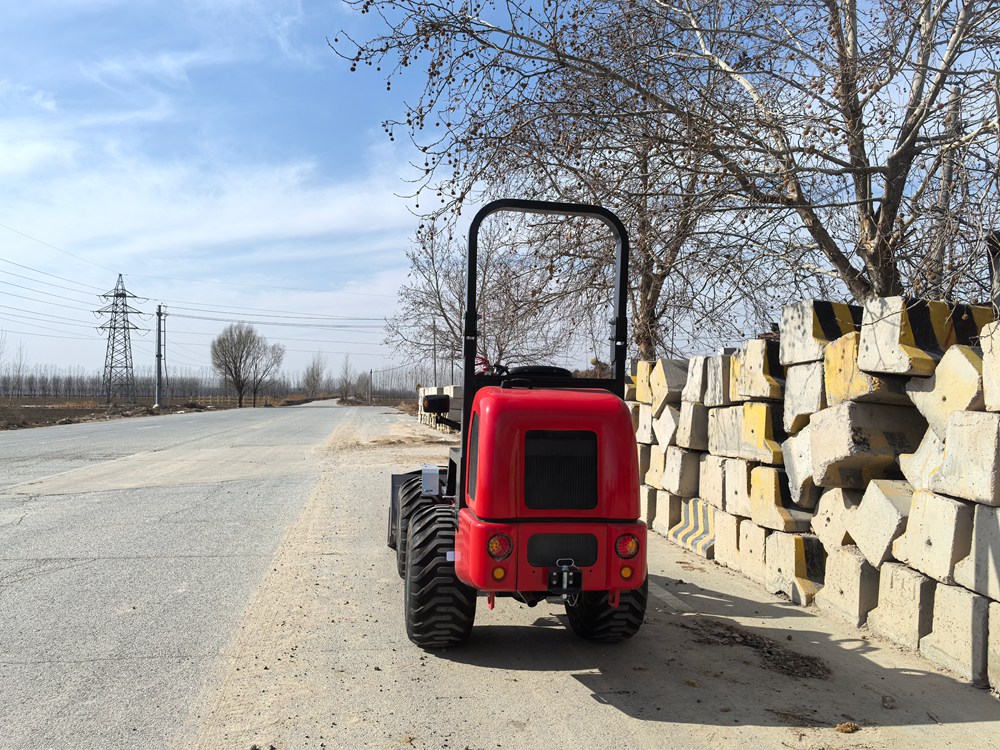

The S220 Compact Wheel Loader redefines efficiency and comfort in its class. Equipped with a powerful 4-cylinder Yanmar engine, this machine ensures robust performance for all-round usage, handling diverse tasks with ease.
Featuring a spacious cabin with heating, the S220 provides operators with unparalleled comfort, enabling extended operation in any weather condition. Whether it’s loading, lifting, or transporting materials, this wheel loader delivers superior comfort and control.
With its compact design and powerful performance, the S220 is perfect for various applications across construction, landscaping, agriculture, and more. Experience the perfect blend of versatility and comfort with the S220 Compact Wheel Loader – your ultimate solution for every job site challenge.
| Technical data | S220 | |

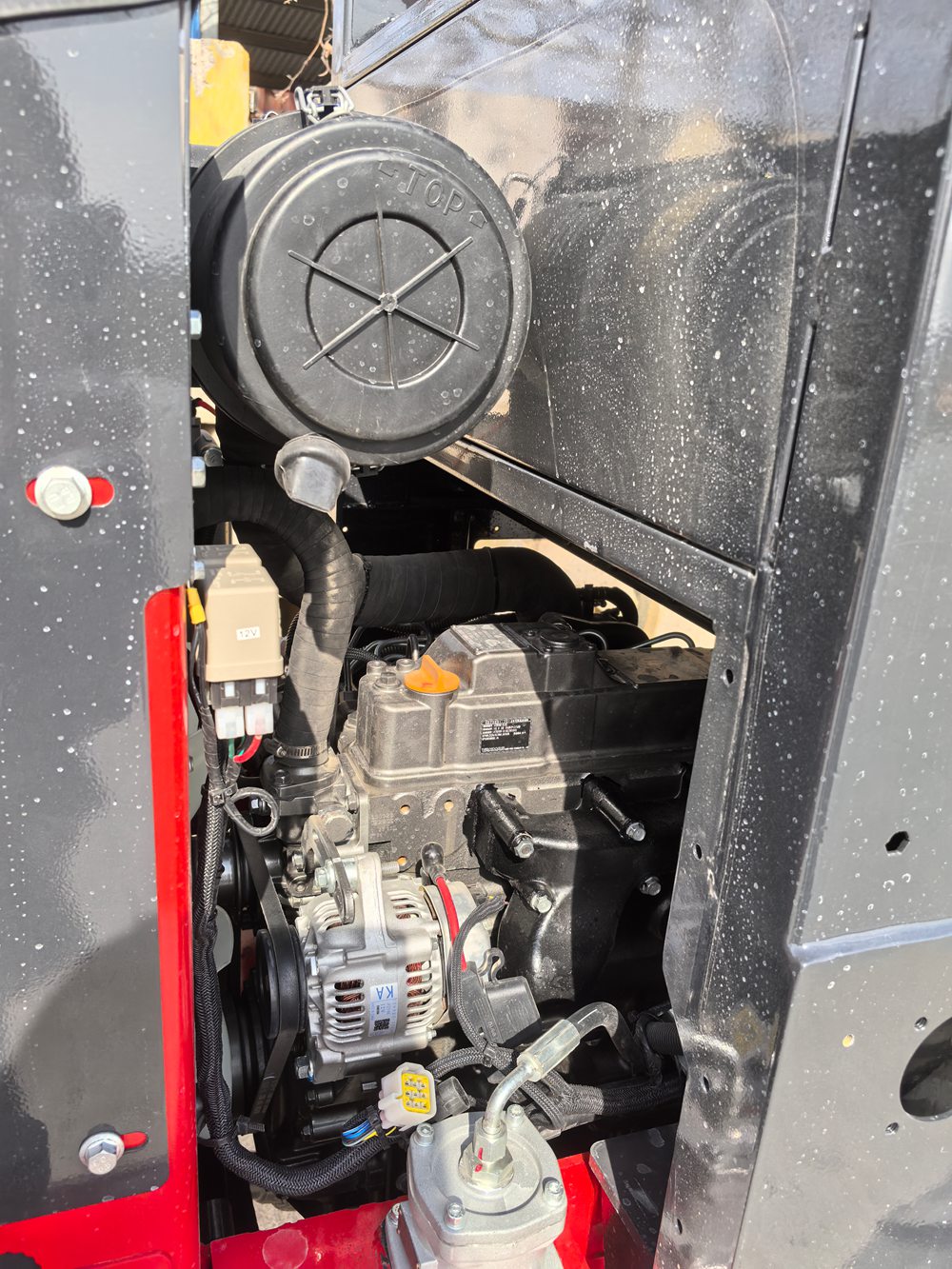

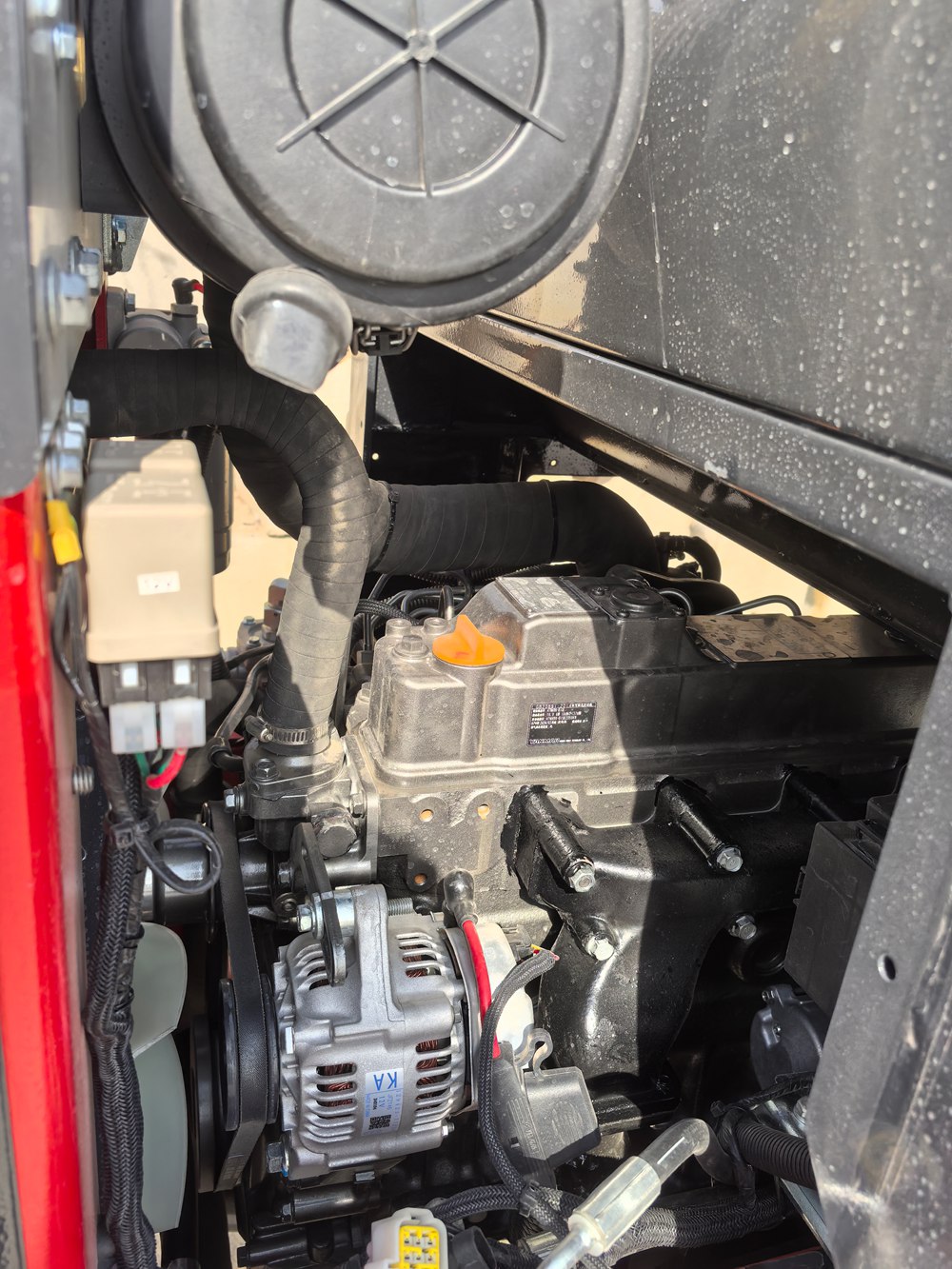

| Engine model | YANMAR 4TNV88-BIGE | Kubota V2403-M-DI-E3B-CSL1T |
| Fuel type | Diesel | |
| Cylinders | 4 | |
| Displacement cc | 2190 | 2434 |
| Emission standards | EU Stage V | China Off-Road GB4 |
| Max engine output kW | 18.5@1500rpm | 36.5@2600 rpm |
| Max engine torque Nm | 141@1500rpm | 158.6@1600rpm |
| Cooling system | Water | |
| Operating voltage V | 12 | |
| Battery Ah | 75 | |
| Operating weight kg | 2600 | |
| Tipping load ,max kg | 1500 | |
| Lifting capacity,max kg | 1200 | |
| Operator’s cab | Cabin | |
| Travel speed km/h | 0~25 | |

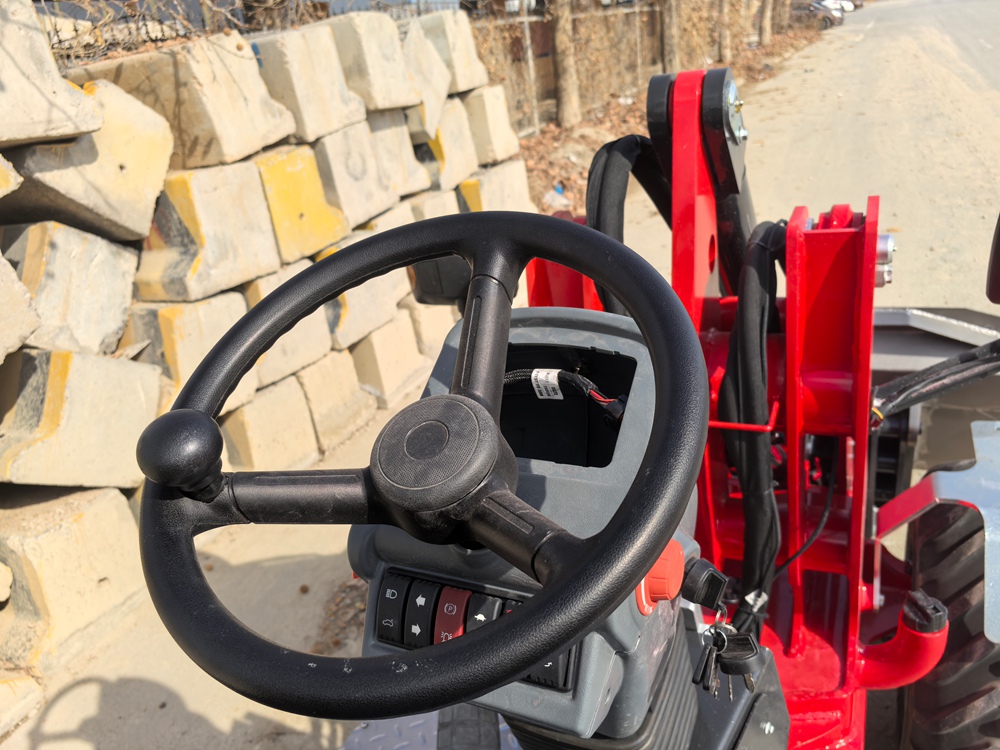

| Steering angle° | 45 | |
| Turn radius inside/outside mm | 1410/3025 | |

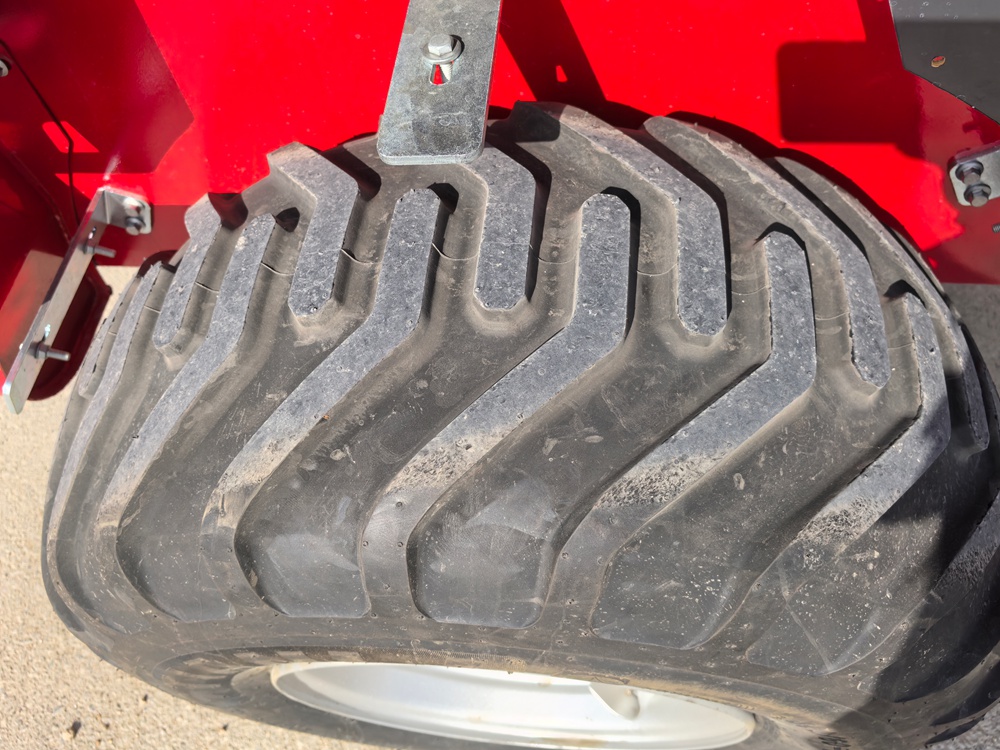

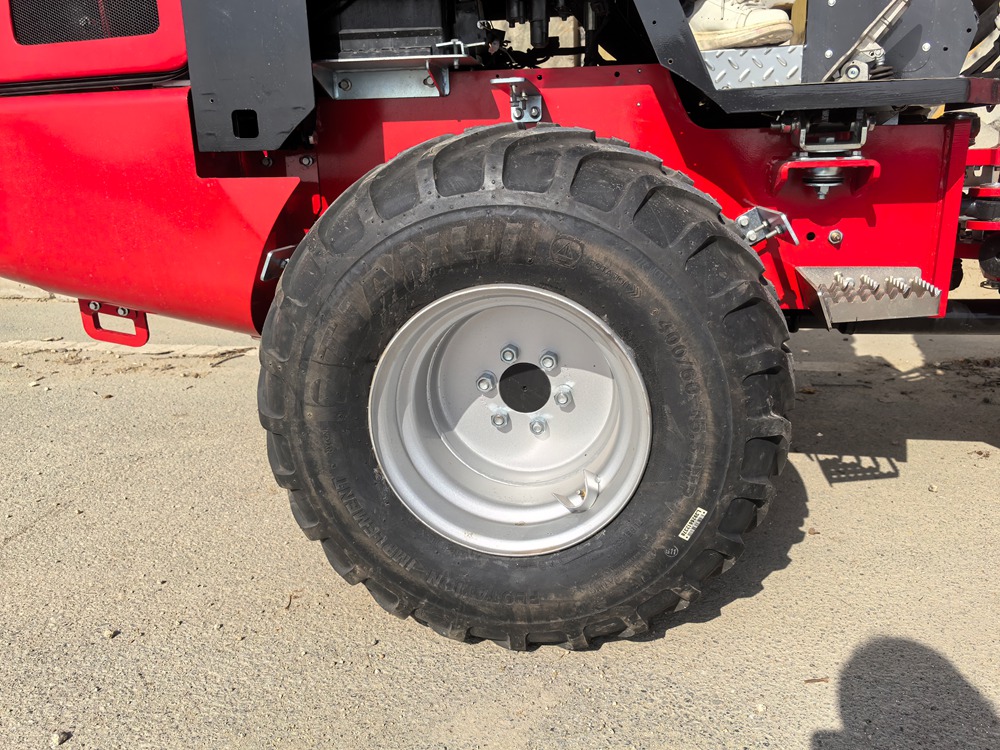

| Standard tires | 10.0/75-15.3 | |
| Fuel tank capacity I | 50 | |
| Hydraulic oil tank capacity I | 50 | |
| Working hydraulic flow(option)I/ min | 40 | |
| Working hydraulic pressure bar | 200 | |
| Transmission type | Hydrostatic | |
